PointCLoud Software

The software PointCloud supports the visualisation and analysis of millions of 3D points in the well known AutoCAD environment. As-built documentation of industrial structures, historic buildings or sculptures and many more is possible in all levels of detail. The point cloud can be augmented or combined with other information like CAD drawings, photos and floor plans.

PointCloud Concept

The points captured by a 3D laser scanner can be treated by means of the standard 2D and 3D functionalities provided by AutoCAD. Enhanced computer graphic technology was applied to allow the management of such huge coloured point clouds in a CAD environment. The orbit and zooming functionality, as well as the possibility to hide and show parts of the point cloud provide a very easy and transparent way of 3D navigation. The support of the object snap (OSNAP) allows the identification of the 3D coordinates of each single point. This information can be used by Standard AutoCAD commands and other customized applications to directly access the accurate geometry of the scanned object.

	OSNAP of type Node
	Tracking of a contour using osnap
	Redused resolution during Orbit
	Create a dimension
	TrueColor helps to navigate
	Hide all but a slice
	Hide all but a box

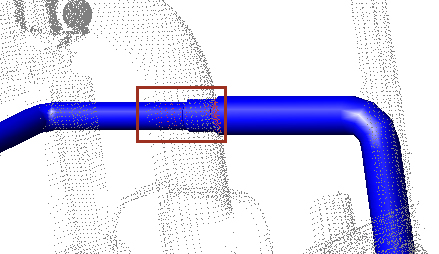

	Find clashes of CAD models and scanned points

We have been pleasantly surprised at the success of Kubit PointCloud. It truly meets a need in the marketplace. It has been embraced by end users and dealers alike.

Request a demo or an evaluation CD and try it for yourself!
For more details, visit its official website here.
We have 5 VIDEO sample here, Click here to view (Player is included)
Get PointCloud Technical Information
