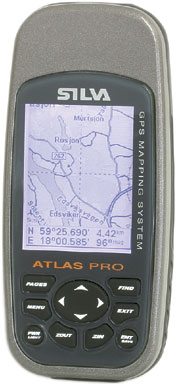

| SILVA ATLAS PRO GPS |
 |
| |
| |
No matter if you are in the outdoors, at sea, or if your main goal is to find a street in a city, the Atlas Pro will guide you to the correct destination.
 Unique Easy/Advance mode makes it easy to get started no matter if you are a beginner in the GPS navigation field.
Pre-programmed mapping data-base covering the US with highways, rivers and lakes at your fingertips. It also has a built-in, low detail, world background mapping data-base.
Plug in one of a variety of Atlas Info MMC cards or Navionics® sea charts (both optional) that represent your region and the resolution gets amazing! Recall addresses and phone numbers of restaurant etc. Find points of interest, such as attractions, airports, cultural, lodging, shopping etc. Navigate safely a sea with all necessary information available on the Navionics® sea charts.
|
| |
| |
| |
Technical Data
Navigation
Waypoints: 1 000 Waypoints
Waypoint icons: 42 symbols
Event markers: 1 000
Routes: 10 reversible routes, each with up to 100 waypoints. Easy point and map cursor navigation/route planning.
Plot trails: 10 trails, max 10 000 trail points.
Unique "Find Home" navigation
Map datums: More than 170 local map datums
Grid systems: More than 10 including UTM, MGRS, plus, Brittish, Irish, Finnish, German, New Zealand, Swedish, Swiss, Taiwan, Greek.
Mapping
Built in maps: US road map. Low detail world map.
Atlas Info cards: High detail mapping including points of interest (attractions, airports, cultural, entertainment, lodging, shopping etc) MMC1-Germany, MMC2-France/Monaco, MMC3-UK/Ireland, MMC4-Denmark/Norway/Sweden/Finland, MMC5-Italy/Liechtenstein/San Marino/Switzerland, MMC6-BeNeLux, MMC7-Spain/Andorra/Portugal, MMC8-Czech/Poland/Austria
Navionics®: Compatible with all Navionics® MMC card sea charts
Zoom range: Mutiple zoom ranges: 0,02km-4000m
GPS-Receiver
Receiver type: 12-channel parallel GPS + WAAS
Position update rate: 1 per second when in continuous GPS navigation mode, down to 10 seconds update rate in power save mode.
Differential GPS/WAAS: Ready for differential corrections/WAAS.
Antenna: Built-in patch antenna, connection for external antenna.
Accuracy: Normally better than 10 meters. (Down to 3 meters with WAAS in the US)
Data I/O
NMEA 0183 Out
RTCM-SC104 DGPS Input
Miscellaneous
LCD: High contrast backlit LCD, 4 level grey scale
LCD Resolution: 180 x 240 Pixels, 43 200 total.
Internal power: 2 pcs AA batteries (not included)
External power: 8-30 VDC
Battery life: Continuous GPS navigation – Up to 12 hours
Power save GPS navigation - Up to 20 hours
Languages: English, French, German, Spanish, Italian, Danish, Swedish, Russian, Dutch & Finnish
Operating temperature range: –10°C to +60°C
Waterproof: IPX7
Dimensions
Size: 146x65x30 mm
Weight: 200 g (excluding AA batteries)
Article number: 22586-901
Optional accessories
Vehicle kit ATLAS (incl. cradle, RAM mount) – Art.no. 22605
Black holster ATLAS – Art.no. 22606
Atlas, Atlas Pro Remote antenna – Art.no. 22607
Atlas Cig Plug Power Adapter – Art.no. 22613
Atlas PC Data cable w/cig plug – Art.no. 22611
Atlas PC Data cable w/o cig plug – Art.no. 22612
Cradle separate ATLAS – Art.no. 22603
Warranty
1 year limited warranty
|
| |
| |
|
