 Price: Inquire Now!

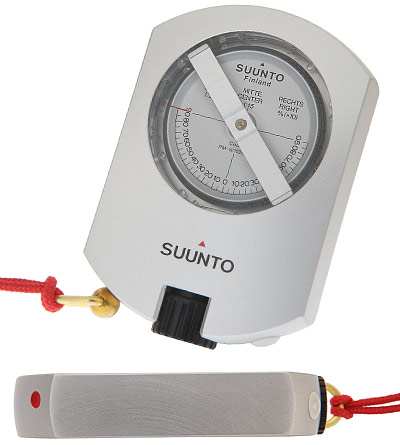

 SUUNTO PM5 CLINOMETER

Reviews:

"Height meter, clinometers and combined height and clinometers"

Suunto PM-5 provides you with a large selection of height meters, clinometers and combined height- and clinometers. Suunto height meters are instruments for measuring the heights, especially the height of trees, with great accuracy and speed. The height meters can also be used to determine the angle of a gradient. Suunto hand-held clinometers are precision instruments used all over the world by surveyors, engineers, cartographers, geologists, miners and architects and many others to measure heights, vertical angles and slopes quickly and easily.



SPECIFICATIONS
Graduation 0-90° in 1° units. -- 0 to 70% in 1% units, 72 to 150% in 2% units
Topo 0 to ±200' with a 66' baseline
Percent & Degrees scales PM5/360PC ±150%, ±90°, Cosines to 45° on back
Dimensions 2-3/4"x2"x5/8"
Weight 4.2 oz.
FEATURES

Height meter
PM-5/1520 P: Scales: 15 m and 20 m, conversion table 20 m - degrees,
optical adjustment for reading

Clinometers
• PM-5/360 PC : Scales: 0 90, 0 150 %, conversion table : cosines 0-45 , optical adjustment for reading
• PM-5/360 S: Scales: 0 90, secant, conversion table: cosines 0-45 , optical adjustment for reading
• PM-5/400 PC: Scales: 0 100 gons, 0 150 %, conversion table 0-50 gons, optical adjustment for reading
• PM-5/6400: Scales: 0 150 %, 0 1600 mils, optical adjustment for reading
• PM-5/SPC: Scales: 0 150 %, secant, conversion table: % - degrees, optical adjustment for reading Combined height and clinometers
• PM-5/1520 PC: Scales: 0 150 %, 15 m and 20 m, conversion table 20 m - degrees, optical adjustment for reading
• PM-5/1520 D: Scales: 0 90 %, 15 m and 20 m, cosines 0 - 45, optical adjustment for reading Suunto clinometers and height meters are also available in feet scales for the US. market.
