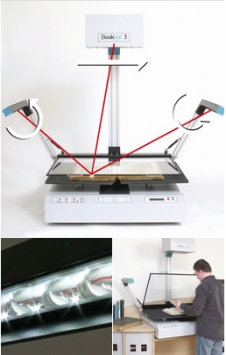

Bookeye 3 A1


Reviews:

The principle of scanning historic books, valuable manuscripts, stapled documents, color drawings and maps without causing damage has been optimised and refined with the new generation of Bookeye® overhead scanners.

The scanner developed and produced in Germany combines state of the art scanning lenses, high-quality CCD image sensors and white LED light, bundled in a movable continuous light strip, which follows the scanning process.

Bookeye® 3 meets individual requirements. This scanning resolution equips you to digitise many different types of originals. Bookeye® 3 is available either as color or as grayscale unit.

Highlights

  • A1 oversize
  • high resolution (300 x 400 dpi)
  • rapid scanning
  • integrated book cradle
  • LED lamps
  • laser-assisted profile detection
  • 1 GBit network interface (TCP/IP)



Features

  • oversize originals larger than A1 format
  • precise LINOS Rodenstock scanning lens
  • high-resolution CCD image sensors
  • autofocus / automatic format recognition
  • focused, glare-free continuous light strip due to High Power White LED during the scanning process
  • 100 % UV- and IR-free light
  • ergonomic optimisation due to dimmable lamps
  • service life of lamp over 20,000 hours
  • integrated motorised book cradle with 100 mm lift
  • variable adjustment to width of spine
  • wooden contact surface for scanning
  • without damage to original
  • optional glass plate
  • BCS-2® capturing software with the following functions:
    • page separation
    • indexing
    • multi-masking
    • cutting
    • deskew / despeckle
    • bookfold correction
    • e-mail connection
    • PDF conversion
    • Web publishing
    • OCR
  • Output formats:
    • TIFF G4, JPEG, PNG, TIFF, PDF
    • Multipage TIFF, ZIP, PCX, BMP, GIF

Technical Data

Product/Article number

  • Bookeye® 3 A1 GS (grayscale) BE3-SYSGS-R1
  • Bookeye® 3 A1 Color BE3-SYSCL-R1

Device data

dimensions in H x W x D in mm:

  • 1,200 x 1,460 x 770 (with lamp arms)
  • 1,200 x 900 x 770 (without lamp arms)

weight without packaging in kg: approx. 60

electrical connection:

  • voltage 100-240 V
  • frequency 50-60 Hz
  • output 50 VA standby / 150 VA operating
  • lamps LUXEON white LED approx. 5,000 LUX continuous light strip

Format of originals
maximum W x D in mm: 900 x 635 (> A1)

Scanning

  • resolution in dpi: 200, 300, 400, 600
  • scanning time in sec: 10 for A1 format
  • color depth for Color (intern / extern): 36 bit / 24 bit
  • color depth for GS (intern / extern): 1,024 / 256 grayscales
  • interface/protocol: 1,000 MBit network / TCP/IP
  • software: BCS-2®

Accessories

  • glass plate
  • additional keyboard
  • foot switch
  • copy card reader
  • book holder
  • Mando furniture
